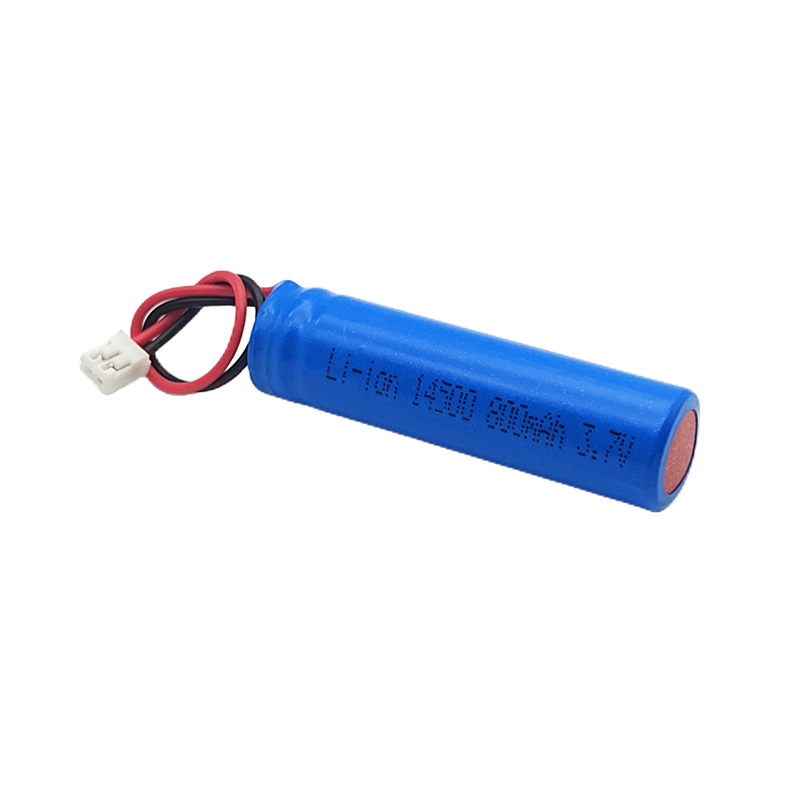

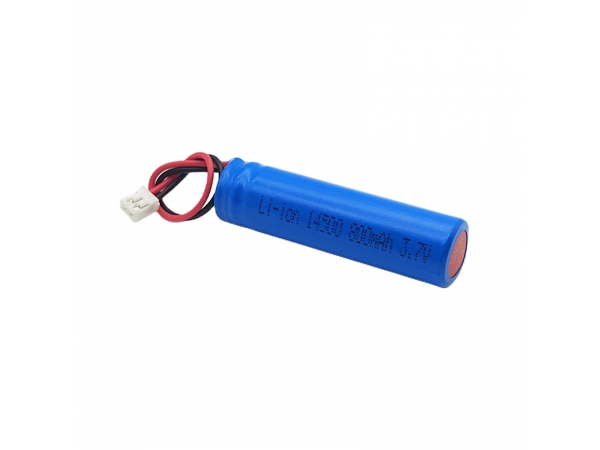

3.7V cylindrical lithium battery | 14500 800mAh 3.7V
3.7V cylindrical lithium battery product model: XL 3.7V 800mAh
Battery capacity 3.7V / line size according to customer requirements
Single battery model: 14500
Packaging method: Industrial PVC heat shrinkable film
Wire model: UL1007 24AWG
3.7V cylindrical lithium battery product model: XL 3.7V 800mAh
3.7V cylinder lithium battery technical parameters (specific design according to customer requirements - voltage / capacity / size / line)

Single battery model: 14500
·Single cell battery voltage: 3.7V
·Nominal voltage of the battery pack after combination: 3.7V
·Single cell battery capacity: 0.8Ah
·Combination method: 1 series 1 parallel
·Voltage range of the combined battery after combination: 3.0~4.2V
·Capacity of the combined battery after combination: 0.8Ah
·Battery pack power: 2.96Wh
·Battery pack size: 14.3*16*50mm
·Maximum discharge current: <0.8A
·Instantaneous discharge current: 1.6~2.4A
·Maximum charging current: 0.2~0.5C
·Number of charge and discharge cycles: >500 times
·Main chips: (Seiko, TI)
3.7V cylindrical lithium battery
 · Conform to relevant national or international battery standards
 · All battery products are  tested before leaving the factory
